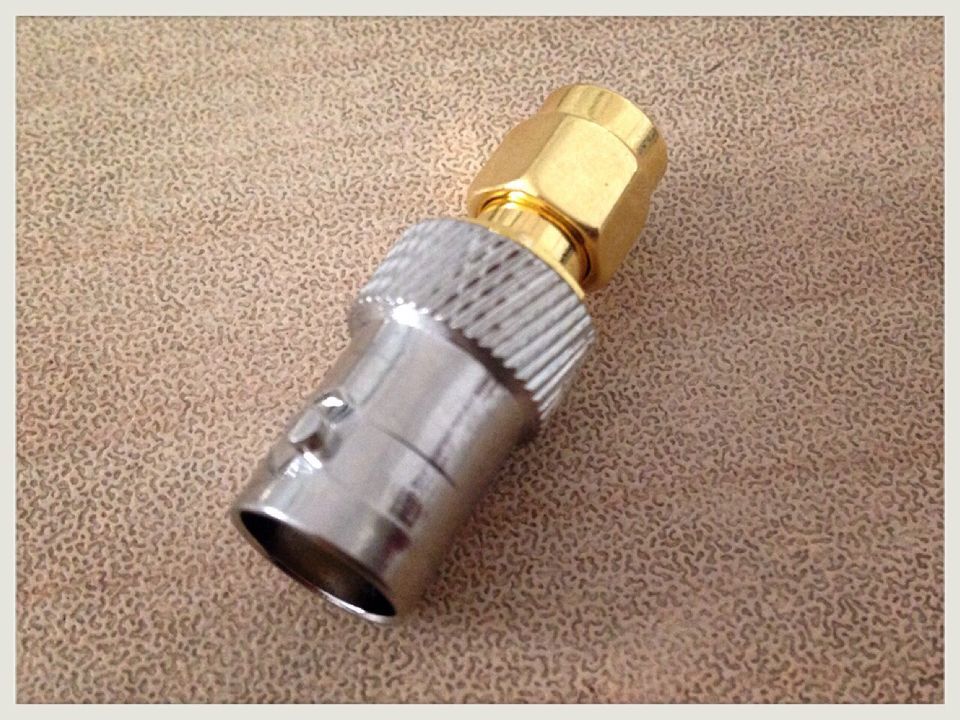

bnc female to sma male adaptor
2015-03-05 10:21  Clicks:
VOTON
Series: SMA male to bnc female
Configuration: Between Series
RoHS Certificate: Complanit
Interface Standards: IEC61169
Data Sheet: Customer Drawing [PDF]

Technical Data

Impedance

  50Ω

Frequency range

  0~6 GHz
Insulation resistance   ≥5000MΩ
Withstanding voltage



1000V
Temperature range   -55 °C ~ +165 °C
Durability (matings)   >500

Material Data
Piece Part Base Material Plating
Center contact Copper Beryllium Alloy Gold plating
Body Brass Gold plating
Insulator PTFE
