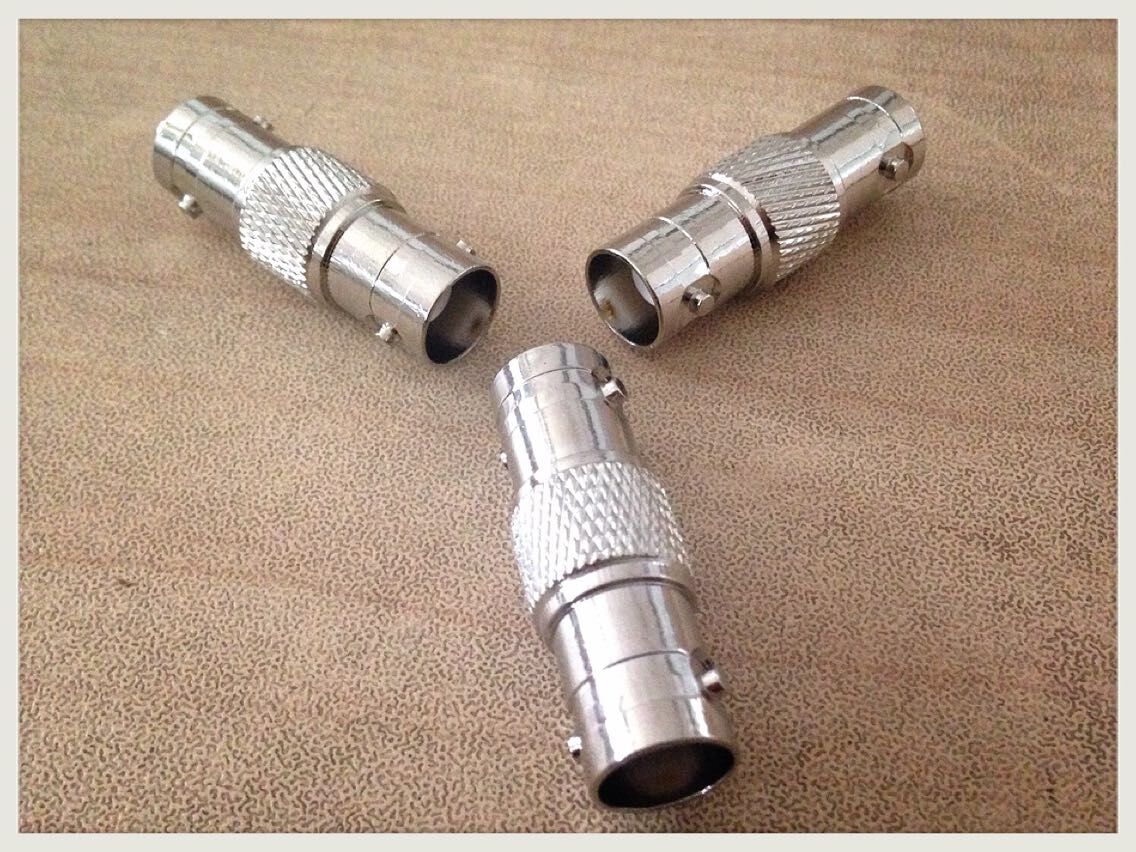

BNC Female to BNC Female adapter
|
VOTON |
|
Series: BNC to BNC |
|
Configuration: Between Series |
|
RoHS Certificate: Complaint |
|
Interface Standards: IEC61169 |
|
Data Sheet: |
Customer Drawing [PDF] |
|
|
 |
|
|
|
Impedance
|
|
50Ω |
|
Frequency range
|
|
0~4GHz |
|
Insulation resistance |
|
≥5000MΩ |
|
Withstanding voltage |
|
1000V |
|
Temperature range |
|
-65 °C ~ +165 °C |
|
Durability (matings) |
|
>500 |
|
|
|
|
|
Material Data |
|
Piece Part |
Base Material |
Plating |
|
Center contact |
Phosphor Bronze |
Gold plating (Nickel underplated) |
|
Body |
Brass |
Nickel plating |
|
Insulator |
PTFE |
|
|
