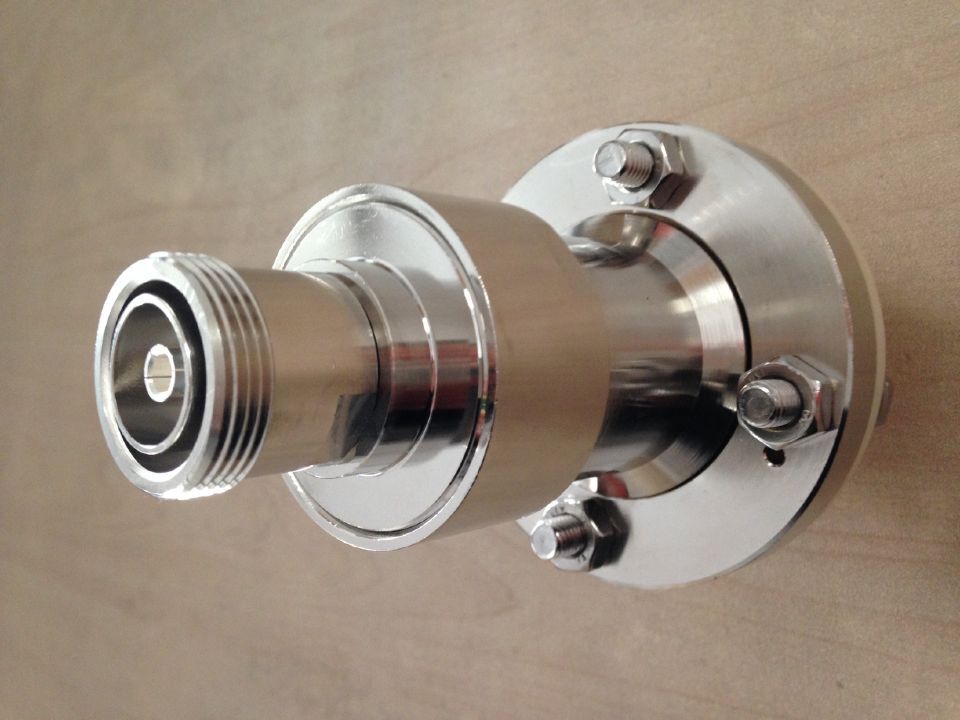

1-5/8EIA to DIN Female adaptor
|
VOTON |
|
Series: EIA |
|
Configuration: between Series |
|
RoHS Certificate: Complaint |
|
Interface Standards: IEC61169 |
|
Data Sheet: |
Customer Drawing [PDF] |
|
|
 |
|
|
|
Impedance
|
|
50Ω |
|
Frequency range
|
|
0~3 GHz |
|
Voltage Rating |
|
5100 volts rms |
|
Dielectric Withstanding Voltage |
|
10400 volts rms |
|
Temperature range |
|
-40 °C ~ +155 °C |
|
Durability (matings) |
|
>500 |
|
|
|
|
|
Material Data |
|
Piece Part |
Base Material |
Plating |
|
Contacts (Inner) |
Male: Beryllium Copper
Female: Brass |
Silver or Gold Plated |
|
Contacts (Outer) |
Brass |
Silver or Nickel Plated |
|
Contacts (Slotted) |
Beryllium Copper |
Silver or Nickel Plated |
|
Body |
Brass |
Silver or Nickel Plated |
|
Insulated |
Teflon |
|
|
Gaskets & Seals |
Silicone Rubber |
|
|
