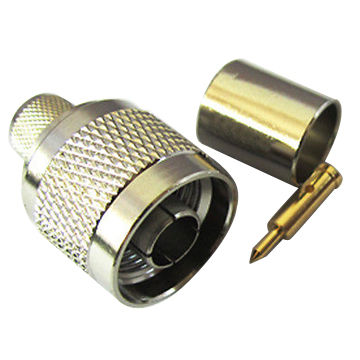

N male crimp Straight for RG8 coaxial cable
N male crimp Straight connectors for RG8 coaxial cable
|
|
|
Interface Type: N Type |
|
Gender: Female |
|
RoHS Certificate: Compliant |
|
Interface Standards: IEC60169 |
|
Data Sheet: |
Customer Drawing [PDF] |
|
|
 |
|
Technical Data |
|
Impedance
|
|
50Ω |
|
Frequency range
|
|
0~6 GHz |
|
Insulation resistance |
|
≥5000MΩ |
|
Withstanding voltage |
|
2500V |
|
Cable entry center contact |
|
Soldered |
|
Cable entry outer contact |
|
Clamped |
|
Temperature range |
|
-65 °C ~ +165 °C |
|
Weight |
|
61g |
|
Durability (matings) |
|
>500 |
|
|
|
|
|
Material Data |
|
Piece Part |
Base Material |
Plating |
|
Center contact |
Phosphor Bronze |
Gold plating (Nickel underplated) |
|
Body |
Brass |
Nickel plating |
|
Fastening Nut |
Brass |
Nickel plating |
|
Insulator |
PTFE |
|
|
Gasket |
Silicone Rubber |
|
|
|
|
|
|
Suitable Cable Types |
|
Cable1 |
|
RG8 Cable |
|
