MMCX Connector are 45% smaller than the SMB, Developed during the |
 |
|
1990s, is one of the smallest and Micro-miniature RF coaxial connectors. |
|
MMCX connector was designed to have snap-on mating, are available |
|
for rf cables, PCB type and SMT type. |
|
MMCX connector get low RF leakage from the nonslotting of its outer |
|
contact and it maintains solid electronic performance from DC-6 GHz. |
|
Though increasingly being replaced by smaller connectors, like the U.FL |
|
(MHF), MMCX Connector is still the standard for wireless and PCS |
|
applications. |
|
|
|
Features & Benefits |
 Broadband performance with low reflection DC to 6 GHz, providing a high-quality solution at a low cost |
|
Quick connect/disconnect snap-on mating reduces installation time |
|
Conforms to European CECC 22000 specifications |
|

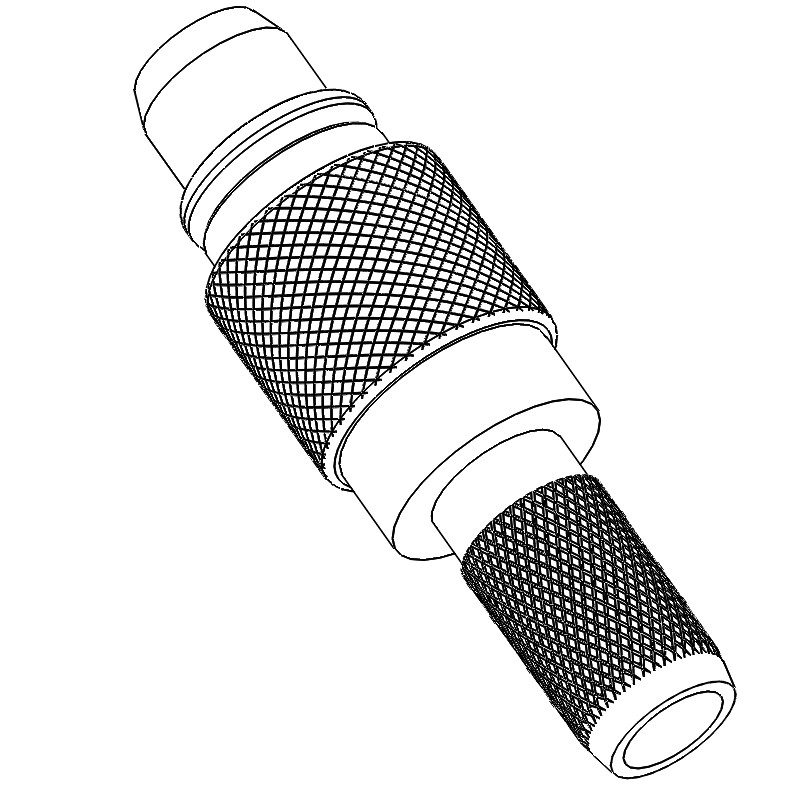

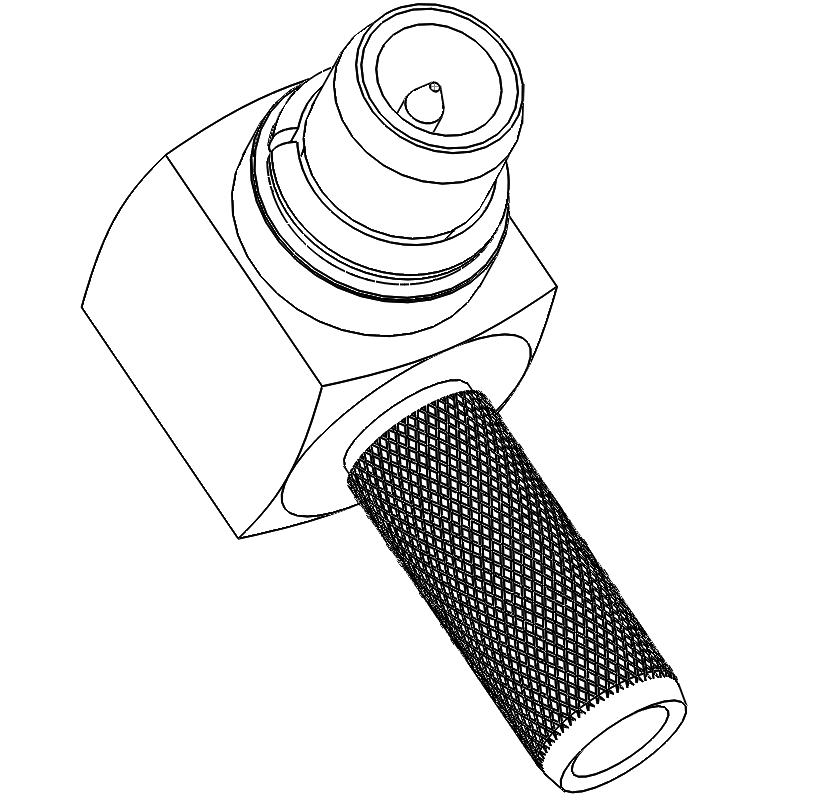

Available in straight and right angle plugs and printed circuit board connectors |
|
|
|
