RG213 Coax Cable With Single Shielded PVC Jacket
RG213 Coax Cable With Single Shielded PVC Jacket
|
Voton P/N: RG213 |
|
|
|
RoHS Certificate: Compliant |
|
Data Sheet: |
Datasheet Download |
|
|
 |
|
|

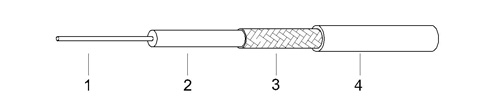

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Bare Copper |
7x0.752 |
|
2. Dielectric |
Solid Polyethylene |
7.24 |
|
3. Outer Conductor |
Bare Copper Braid
|
7.85 |
|
4. Jacket |
PVC
|
10.30 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
101.05 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
66 |
|
Shielding Effectiveness (>dB) |
|
10 |
|
Bending Radius (mm) |
|
40 |
|
Max. Oper. Voltage (VMS) |
|
5000 |
|
Max. Oper. Frequency (MHz) |
|
1000 |
|
Operating Temp. (℃) |
|
-20 to 80 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
|
Attenuation (≯dB/100m) |
|
100 |
|
6.6 |
|
400 |
|
14.1 |
|
1000 |
|
24.0 |
|
