RG8 Coax Cable Double Shielded with Black PE Jacket
RG8 Coax Cable Double Shielded with Black PE Jacket
|
Voton P/N: RG8 |
|
|
|
RoHS Certificate: Compliant |
|
|
|
 |
|
|

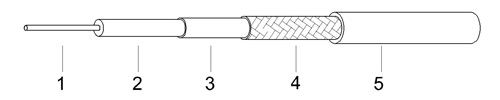

Construction Spectification |
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Bare Copper |
2.74 |
|
2. Dielectric |
Physical Foam Polyethylene |
7.24 |
|
3. Outer Conductor |
Bonded Aluminum Foil |
7.39 |
|
4. Overall Braid |
Tinned Copper Braid
|
8.13 |
|
5. Jacket |
PE
|
10.29 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
78.4 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
85 |
|
Shielding Effectiveness (>dB) |
|
90 |
|
Max. Oper. Voltage (VMS) |
|
4000 |
|
Min. Bend Radius (mm) |
|
51 |
|
Operating Temp. (℃) |
|
-40 to 80 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
|
Attenuation (≯dB/100m) |
|
30 |
|
2.20 |
|
50 |
|
2.90 |
|
150 |
|
5.00 |
|
220 |
|
6.10 |
|
450 |
|
8.90 |
|
900
|
|
12.80
|
|
1500
|
|
16.80
|
|
1800
|
|
18.60
|
|
2000
|
|
19.60
|
|
2500
|
|
22.20
|
|
5800
|
|
35.50
|
|
