Mini Coaxial Cable MIC1.32
Mini Coaxial 1.32mm Cable [P/N: MIC1.32]
|
 |
|
.jpg)
|

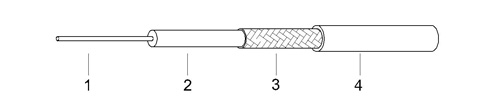

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Played Copper Clad Steel |
7x0.08 |
|
2. Dielectric |
PTFE |
0.68 |
|
3. Outer Conductor |
Silver Plated Copper Braid
|
0.88 |
|
4. Jacket |
FEP
|
1.32 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
100 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
70 |
|
Bending Radius (mm) |
|
4 |
|
Max. Oper. Voltage (VMS) |
|
1000 |
|
Max. Oper. Frequency (MHz) |
|
6000 |
|
Operating Temp. (℃) |
|
-55 to 200 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
|
Attenuation (≯dB/100m) |
|
1000 |
|
240 |
|
3000 |
|
400 |
|
5000 |
|
510 |
|
6000
|
|
560
|
|
