Low Loss Flexible 400 Cable
Low Loss Flexible 400 Cable Double Shielded with Black PVC Jacket
|
VOTON P/N: VTLMR400 |
Drop-in Replacement for RG8/9913 type Cable;
Jumper Assemblies in Wireless Communication Systems
Short Antenna Feeder Runs
Any Application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed
|
|
RoHS Certificate: Compliant |
|
|
|
 |
|
.jpg)
|

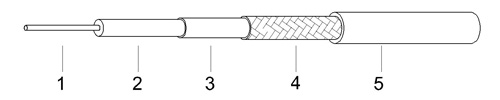

Construction Spectification |
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Solid Copper |
2.74 |
|
2. Dielectric |
Physical Foam Polyethylene |
7.24 |
|
3. Outer Conductor |
Bonded Aluminum Foil |
7.39 |
|
4. Overall Braid |
Tinned Copper Braid
|
8.13 |
|
5. Jacket |
Black PVC or Polyethylene
|
10.29 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
77.1 |
|
Impedance (Ohm) |
|
50 |
|
Velocity(%) |
|
85 |
|
Shielding Effectiveness (>dB) |
|
90 |
|
Inner Conductor DC Resistance (Ω/km) |
|
2.92 |
|
Outer Conductor DC Resistance (Ω/km) |
|
5.41 |
|
Voltage Withstand (Volts DC) |
|
2500 |
|
VSWR≤(Return Loss ≥dB) |
5-3000MHz |
1.20 (20) |
|
800-1000MHz |
1.10 (26) |
|
1700MHz-2000MHz |
1.15 (23) |
|
2000MHz-2400MHz |
1.15 (23) |
|
Min. Bend Radius (mm) |
|
51 |
|
Operating Temp. (℃) |
|
-40 to 80 |
|
|
|
|
|
Attenuation (Typical) |
|
Frequency (MHz) |
Attenuation (≯dB/100m) |
Avg. Power (KW) |
|
30 |
2.20 |
2.91 |
|
50 |
2.90 |
2.21 |
|
150 |
5.00 |
1.28 |
|
220 |
6.10 |
1.05 |
|
450 |
8.90 |
0.72 |
|
900 |
12.80 |
0.50 |
|
1500 |
16.80 |
0.38 |
|
1800 |
18.60 |
0.34 |
|
2000 |
19.60 |
0.33 |
|
2500 |
22.20 |
0.29 |
|
3000 |
24.80 |
0.26 |
|
5800 |
35.50 |
0.18 |
|
