Hand Formable Cable 0.086 Diameter with FEP Jacket
|
Hand Formable Cable 0.086 Diameter with FEP
|
 |
|
.jpg)
|

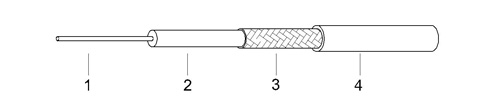

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Plated Copper Clad Steel |
0.51 |
|
2. Dielectric |
PTFE |
1.66 |
|
3. Outer Conductor |
Tin Soaked Copper Braid |
2.10 |
|
3. Jacket |
FEP |
2.50 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
95 |
|
Impedance (Ohm) |
|
50 |
|
Velocity of Propagation (%) |
|
69.5 |
|
Time Delay (ns/m) |
|
4.7 |
|
Moding Frequency (GHz) |
|
61 |
|
Max. Operating Voltage (Vrms) |
|
1500 |
|
Min. Screening Effectiveness up to 18GHz (dB) |
|
100 |
|
Min. Bending Radius Static (mm) |
|
6 |
|
Min. Bending Radius Repeated (mm) |
|
20 |
|
Operating Temp. (℃) |
|
-55 to 125 |
|
|
|
|
|
Attenuation & Average Power @ 20 ℃ at Sea Level |
|
Frequency (GHz) |
Attenuation (≯dB/100m) |
Power (Watts CW) |
|
0.5 |
45.0 |
173.5 |
|
1.0 |
64.0 |
121.5 |
|
5.0 |
151.0 |
52.2 |
|
10.0
|
222.0
|
35.8
|
|
20.0
|
329.0
|
24.3
|
|
