Hand Formable Cable 0.141 Diameter
|
Hand Formable Cable 0.141 Diameter
|
 |
|
.jpg)
|

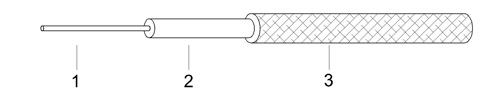

Construction Spectification |
|
|
Item
|
Material |
Diamenter (mm) |
|
1. Inner Conductor |
Silver Plated Copper Clad Steel |
0.92 |
|
Silver Plated Copper |
|
2. Dielectric |
PTFE |
2.98 |
|
3. Outer Conductor |
Tin Soaked Copper Braid |
3.52 |
|
|
|
|
|
Electrical Characteristics |
|
Capacitance (Pf/M) |
|
95.1 |
|
Impedance (Ohm) |
|
50 |
|
Velocity of Propagation (%) |
|
70 |
|
Time Delay (ns/m) |
|
4.7 |
|
Moding Frequency (GHz) |
|
34 |
|
Max. Operating Voltage (Vrms) |
|
1900 |
|
Min. Screening Effectiveness up to 18GHz (dB) |
|
100 |
|
Min. Bending Radius Static (mm) |
|
8 |
|
Min. Bending Radius Repeated (mm) |
|
40 |
|
Operating Temp. (℃) |
|
-55 to 125 |
|
|
|
|
|
Attenuation & Average Power @ 20 ℃ at Sea Level |
|
Frequency (GHz) |
Attenuation (≯dB/100m) |
Power (Watts CW) |
|
0.5 |
26.0 |
436.5 |
|
1.0 |
39.0 |
303.4 |
|
5.0 |
92.0 |
126.7 |
|
10.0 |
138.0 |
85.5 |
|
20.0 |
210.0 |
56.6 |
|
